Aluminum • Panoramic Sliding Door

Mosaic AeroGlide™ 1500

Panoramic Sliding Door

Seamless transitions. Effortless performance.

The AeroGlide 1500 Panoramic Sliding Door pairs expansive glass with a deep thermally broken frame to create a clean connection between indoor and outdoor spaces. A 150 mm (5.91") profile depth and wide multi-track sill deliver large panel spans, smooth-gliding operation, and a concealed drainage path that keeps the threshold weathertight.

  • Wide spans: Wide spans and big terrace doors.
  • Multi-track sill: 218.2 mm (8.59") overall sill width. Two-panel (XX) and multi-track configurations.
  • Concealed drainage: Weep channel keeps the threshold weathertight.
  • Secure: Multi-point locking system.
  • Glass: Double pane standard, triple pane optional. Low-E, argon filled, tempered.

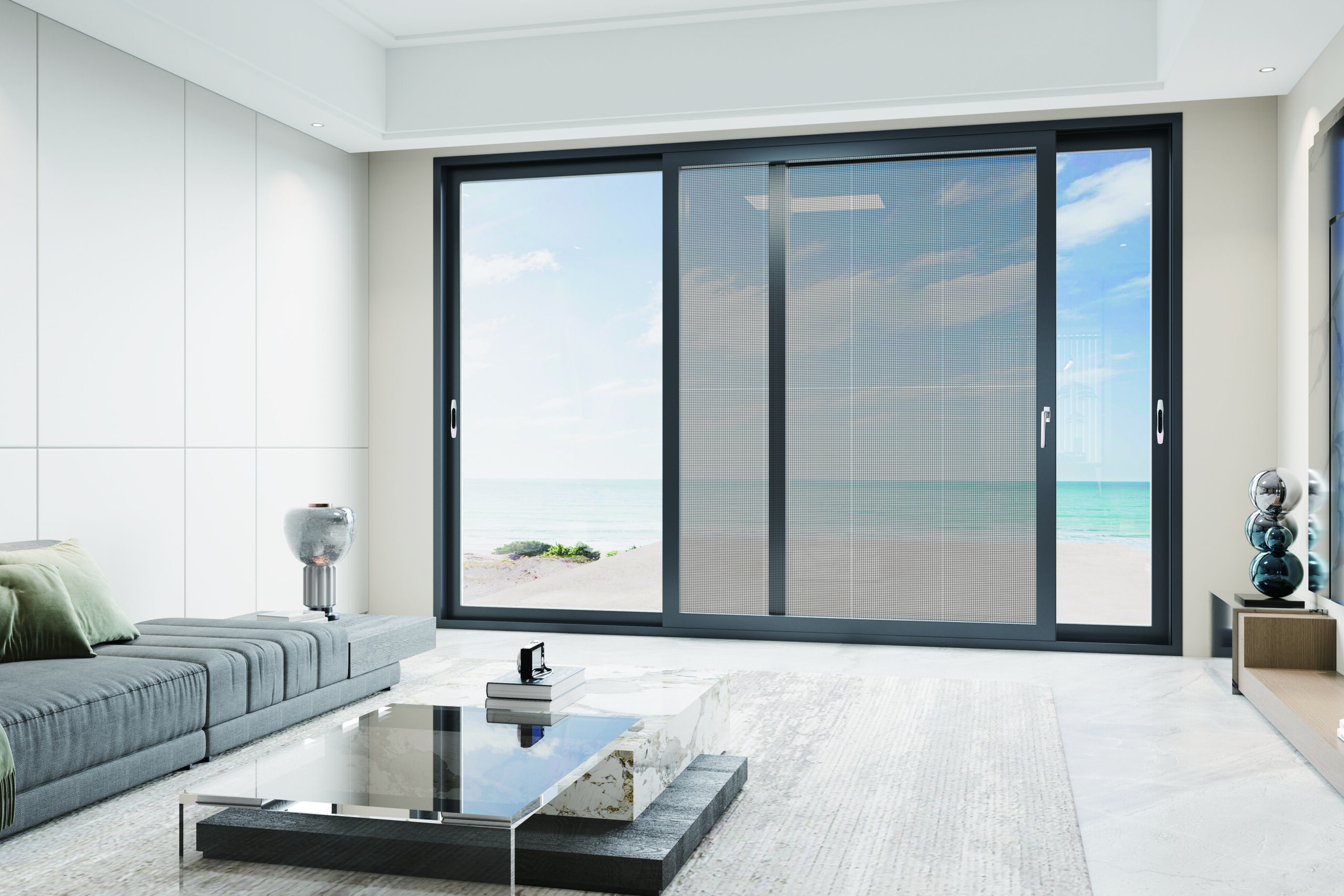

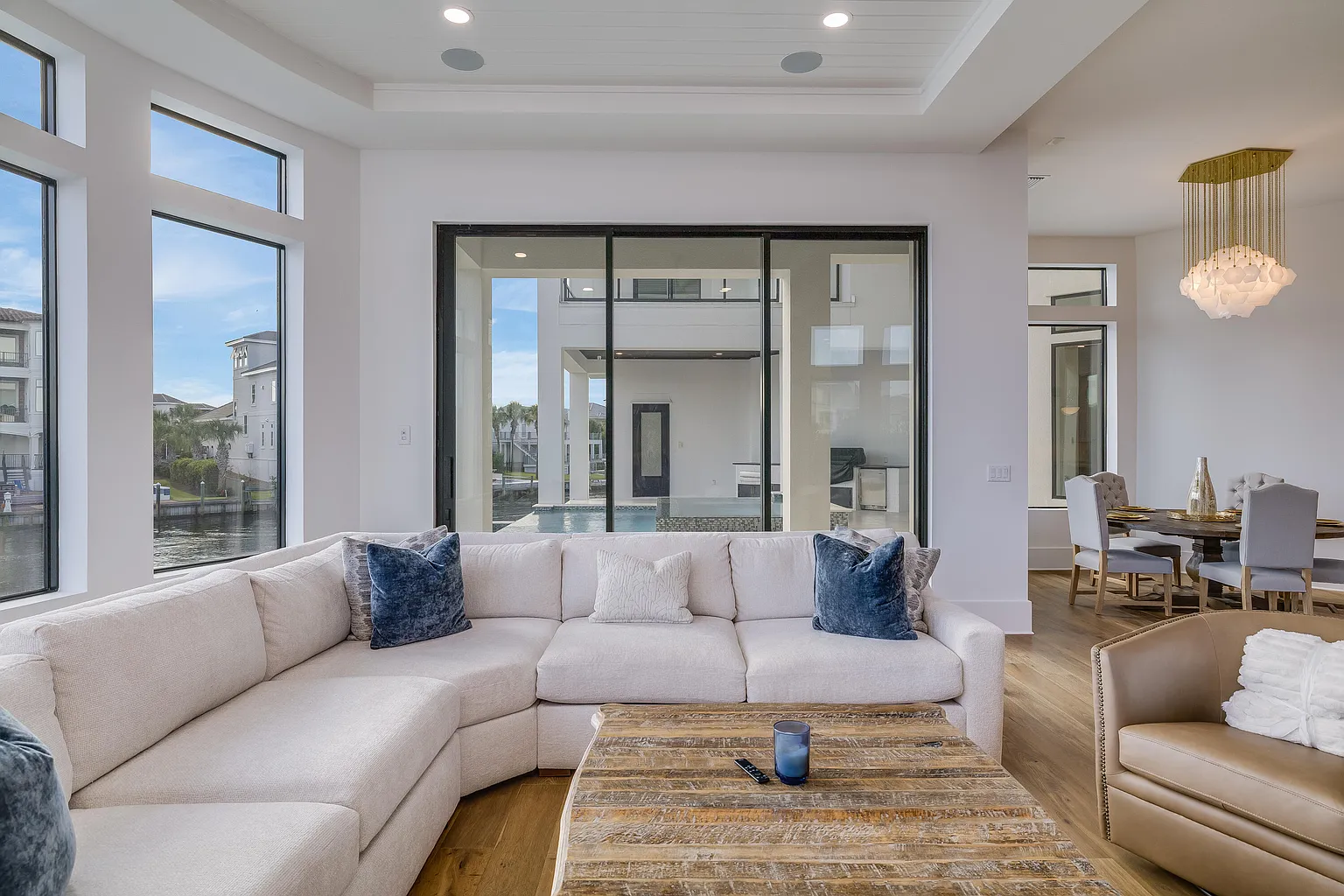

Sliding glass door opening a living area to the patio
SystemThermally broken aluminum, PA66-GF25 nylon thermal break
Aluminum alloy6063-T5 / 6060-T66
Frame depth150 mm (5.91")
Overall sill width218.2 mm (8.59")
Configuration2-panel sliding (XX); multi-track
GlazingDouble pane, 26 mm (1.02") standard; triple pane, 39 mm (1.54") optional
GlassLow-E (Solarban 60 / 70), argon fill 90%, warm edge / TPS spacer, tempered
Weather strip and sealEPDM composite foam; EPDM, triple seal
LockingMulti-point locking system
DrainageConcealed weep channel
U-factor0.55*
SHGC0.22*
VT0.45*
Condensation (CR)27*
Sound insulationSTC 37 (ASTM E413-22)**
Surface treatmentPowder coat, fluorocarbon, anodized. Custom color matching on request.
Hardware colorsWhite, Nickel, Black

*Simulated. Lowest certified value, excluding laminated glazing.

**Performance ratings are based on triple-pane glazing. Double-pane values available on request.

Door configurations and maximum spans are set per project from the signed drawings.

Popular Options

Configurations
Two-panel sliding (XX) and multi-track.
Glazing
Double pane standard, triple pane optional. Laminated PVB interlayer optional.
Glass substrate
Clear, low iron, grey or blue.
Grids and blinds
Built-in, optional.
Finishes
Powder-coated aluminum colors and woodgrain finishes. Custom color matching on request.
Hardware colors
White, Nickel, Black.

Why Mosaic AeroGlide™

Smooth-gliding operation

A 150 mm (5.91") profile depth and wide multi-track sill deliver large panel spans and smooth-gliding operation.

Expansive glass

Pairs expansive glass with a deep thermally broken frame.

Seamless transitions

A clean connection between indoor and outdoor spaces.

Thermally broken frame

PA66-GF25 nylon thermal break in a 150 mm (5.91") deep aluminum frame.

Concealed drainage

A concealed weep channel keeps the threshold weathertight.

Design & Performance Features

01

Deep thermally broken frame

  • 150 mm (5.91″) profile depth.
  • PA66-GF25 nylon thermal break.
  • Aluminum alloy 6063-T5 / 6060-T66.

02

Glazing

  • Double pane, 26 mm (1.02″), standard. Triple pane, 39 mm (1.54″), optional.
  • Low-E (Solarban 60 / 70), argon fill 90%, warm edge / TPS spacer.
  • Tempered glass. Laminated PVB interlayer optional.

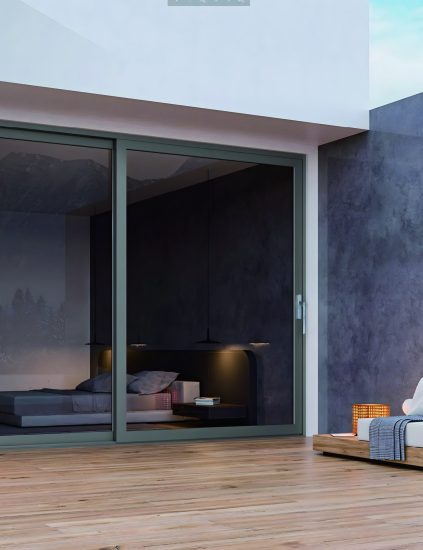

Glasglide greyslide

03

Weather and drainage

  • EPDM composite foam weather strip and EPDM triple seal.
  • Concealed weep channel drainage.
  • Multi-point locking system.

04

Sound insulation

  • STC 37 (ASTM E413-22).
  • Ratings are based on triple-pane glazing. Double-pane values available on request.

The Mosaic Promise – Performance, Luxury, and Seamless Design

Door configurations and maximum spans are set per project from the signed drawings. Glass makeup is specified per project from the plans.
